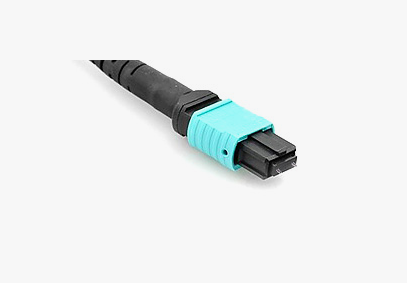

An MPO cable (Multi-fiber Push On cable) is a high-density fiber optic cable designed to connect multiple optical fibers in a single compact assembly. It is widely used in modern data centers, telecommunications networks, and cloud infrastructure where high-speed data transmission and space efficiency are critical. MPO cables simplify network design by combining multiple fibers into one connector system, reducing installation time and improving scalability.
What Is an MPO Cable?
An MPO cable is a pre-terminated fiber optic cable that uses MPO connectors to group multiple fibers—commonly 8, 12, 16, or 24 inside a single connector. Instead of managing individual fiber connections, MPO technology allows all fibers to be connected at once.
This makes MPO cables ideal for high-density environments where performance, speed, and organization are essential.
How MPO Cables Work
MPO cables transmit data using light signals across multiple optical fibers simultaneously. Each fiber inside the cable carries a separate data stream.
The process works as follows:
- Data is converted into light signals
- Light travels through multiple fiber strands
- MPO connectors align fibers precisely
- Signals are transmitted in parallel
- Data is received and converted back into electrical signals
This parallel transmission allows extremely high bandwidth and fast communication.
Structure of MPO Cable
Optical Fibers
The core transmission medium that carries light signals.
MPO Connector
A multi-fiber connector that holds and aligns all fibers in a precise arrangement.
Outer Jacket
Protects the internal fibers from damage, moisture, and environmental stress.
Strength Members
Provide mechanical support and prevent cable stretching or breakage.
Types of MPO Cables
Single-Mode MPO Cable
Used for long-distance transmission with high bandwidth and minimal signal loss. Common in telecom and backbone networks.
Multi-Mode MPO Cable
Designed for short-distance, high-speed communication within data centers.
Trunk MPO Cable
A backbone cable that connects major network components using multiple fibers in a single assembly.
Harness MPO Cable
Breaks out MPO connectors into multiple duplex connectors for flexible connectivity.
MPO Cable Polarity Types
Type A (Straight Through)
Fibers are connected in a straight sequence from one end to the other.
Type B (Reverse)
Fibers are reversed to ensure correct transmission alignment.
Type C (Pairwise Flip)
Adjacent fibers are swapped for specific network configurations.
Proper polarity ensures accurate data transmission across the network.
Key Benefits of MPO Cable
High-Density Connectivity
MPO cables support multiple fibers in a single connector, saving space in crowded environments.
Faster Installation
Pre-terminated designs reduce installation time and eliminate complex splicing.
High Bandwidth Support
They enable high-speed data transfer required for cloud computing and data centers.
Scalability
Networks can be easily expanded without major infrastructure changes.
Reduced Cable Management Complexity
Fewer individual cables improve organization and airflow in server environments.
Applications of MPO Cable
Data Centers
MPO cables are widely used to connect servers, switches, and storage systems efficiently.
Telecommunications Networks
They form the backbone of modern telecom infrastructure for high-speed communication.
Cloud Computing Systems
Cloud providers rely on MPO cables to handle massive data traffic between servers.
Enterprise Networks
Businesses use MPO cabling for internal high-speed communication systems.
5G and Next-Generation Networks
MPO technology supports high-capacity backhaul networks for mobile communication systems.
Installation and Maintenance
Installation Process
- Inspect connector cleanliness
- Align MPO connectors using guide pins
- Connect with push-pull mechanism
- Test signal quality and continuity
Maintenance Tips
- Keep connectors dust-free
- Use protective caps when not in use
- Avoid bending beyond recommended limits
- Regularly inspect and clean end faces
Proper maintenance ensures long-term reliability.
Challenges of MPO Cables
Despite their advantages, MPO cables have some challenges:
- Requires precise alignment
- Sensitive to dust and contamination
- Higher initial cost compared to standard cables
- Needs skilled installation for optimal performance
However, their efficiency and scalability make them ideal for modern networks.
Future of MPO Cable Technology
As data demand continues to grow, MPO cable technology will evolve further. Future improvements include:
- Higher fiber counts per connector
- Improved alignment precision
- Faster deployment solutions
- Enhanced durability and flexibility
These advancements will support next-generation high-speed networks.
Conclusion
An MPO cable is a vital component of modern fiber optic infrastructure, enabling high-density, high-speed, and scalable data transmission. With its ability to connect multiple fibers in a single compact system, it plays a key role in data centers, telecom networks, and cloud computing environments. As global connectivity demands increase, MPO cables will continue to support the future of fast and efficient digital
